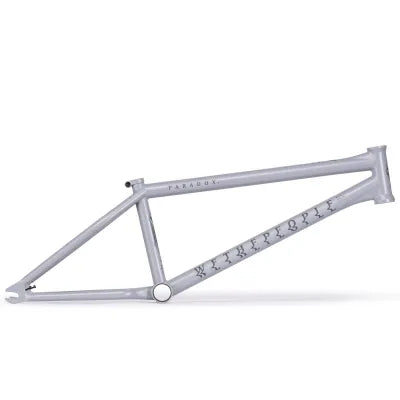

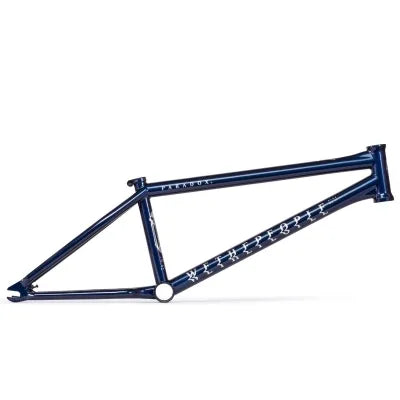

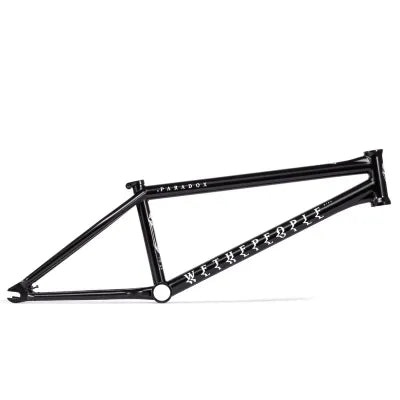

Paradox Frame
Paradox Frame
"Team street frame”
We took our incredibly popular Battleship frame and gave it a full injection of our latest frame technology making the absolute ultimate street frame.
boasting our new invest casted yoke, seat stay bridge, dropout and seat clamp, the Paradox frame is one of the most feature packed frames we’ve ever made. available in a longer 21.25” size for all the taller street riders needing a longer frame with super responsive geometry.
includes our lifetime guarantee"
Tubing - treated butted, japanese seamless 4130 crmo
Bottom bracket - 74mm mid size, cnc machined and heat- tubing
Head tube - 127mm cnc machined and heat-treated, integ. h/set
Dropouts - 7.5mm investment cast with integrated chain tensioners, heat-treated 4130 crmo
Brakes - brakeless frame
Features:
- Based on the battleship frame with a full technical upgrade
- Investment cast chain stay bridge
- Extra thick double butted top tube
- Super short 12.75" (slammed) chain stay
- Unique investment cast chain stay yoke for improved tire and sprocket clearance
- Oversized 20.5mm seat stays for increased stiffness and durability
- Ovalised chain stays for increased tire & sprocket clearance
- Larger 1.8mm welding at head tube
- Wider rear triangle allows clearance for a 2.5" tyre
- Hydroformed top tube and down tube for superior strength and stiffness
- Investment cast seat clamp
- Includes lifetime guarantee
Frame geometry
a - top tube length: 20.75", 21" or 21.25"
b - chain stay length: 12.7" - 13.25" - optimized for 12.75/13" w/25-9
c - head tube angle: 75.5°
d - seat tube angle: 71°
e - bb height: 11.7"
f - standover height: 9"
