Odyssey
Odyssey Antigram v2 Cassette Hub
Odyssey Antigram v2 Cassette Hub
Regular price
£179.99 GBP
Regular price
Sale price
£179.99 GBP
Unit price
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
The Odyssey Antigram is a 36-H rear hub that is strong, light and reasonably priced with in-bound axle bolts that is both RHD/LHD switchable and now comes with a replaceable hub guard.
The Antigram v2 now uses the same hub guard as the Clutch v2 to address all your grinding needs.
Features
- 2014-T6 forged aluminum hub shell
- 6903RS sealed cartridge ball bearings
- 14mm, 4130 chromoly axle bolts w/17mm 4130 chromoly female axle
- 9t driver with 3-Pawl independent springs design and precision caged needle bearings
- RHD/LHD switchable
- Replaceable plastic hub guard included
- 454g with guard and 436 without guard
Measurements
- Drive Side Effective Flange Diameter: 49mm
- Non-Drive Side Effective Flange Diameter: 49mm
- Drive Side Flange to Center Distance: 30mm
- Non-Drive Side Flange to Center Distance: 30mm
Materials
Materials
Shipping & Returns
Shipping & Returns
Dimensions
Dimensions
Care Instructions
Care Instructions

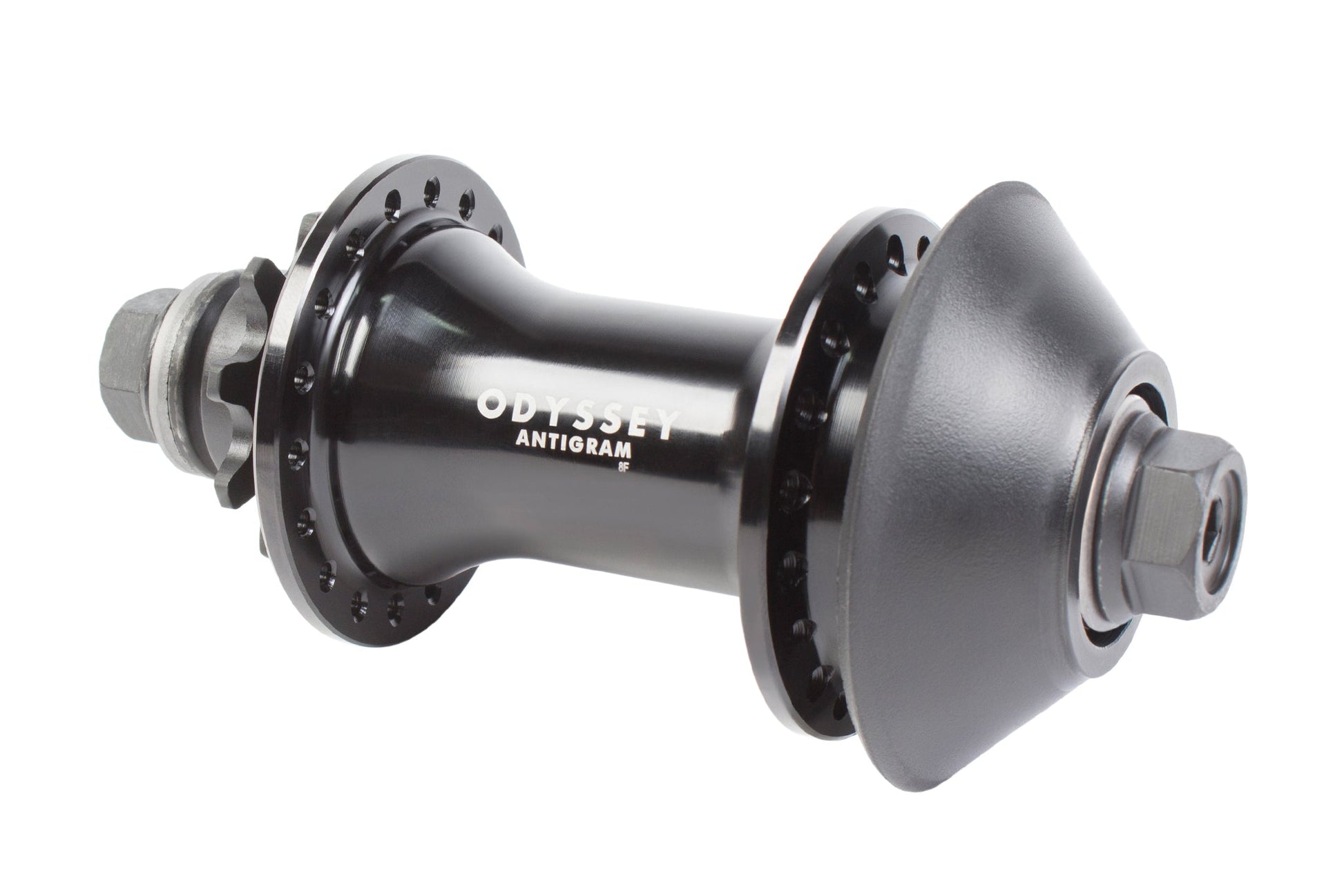

![Odyssey Antigram v2 Cassette Hub](http://store.theloadingbayglasgow.com/cdn/shop/products/ODSY-Antigram-V2-Hub-Black-3Q-Guard-1-Web.jpg?v=1662480344&width=1445)

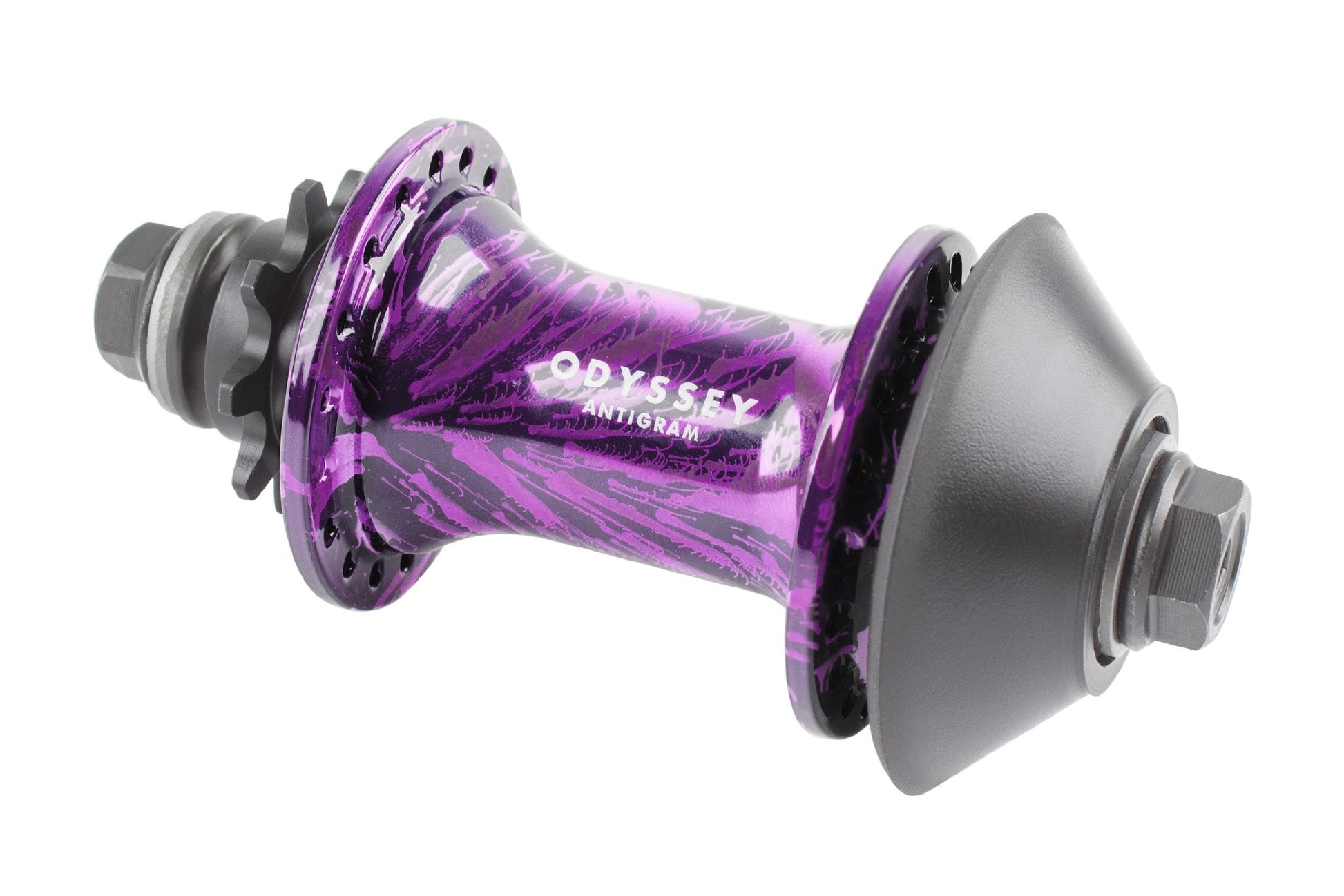

![Odyssey Antigram v2 Cassette Hub](http://store.theloadingbayglasgow.com/cdn/shop/products/ODSY-Antigram-V2-Hub-3Q-Guard-Purple-Rain-Web.jpg?v=1662480344&width=1445)

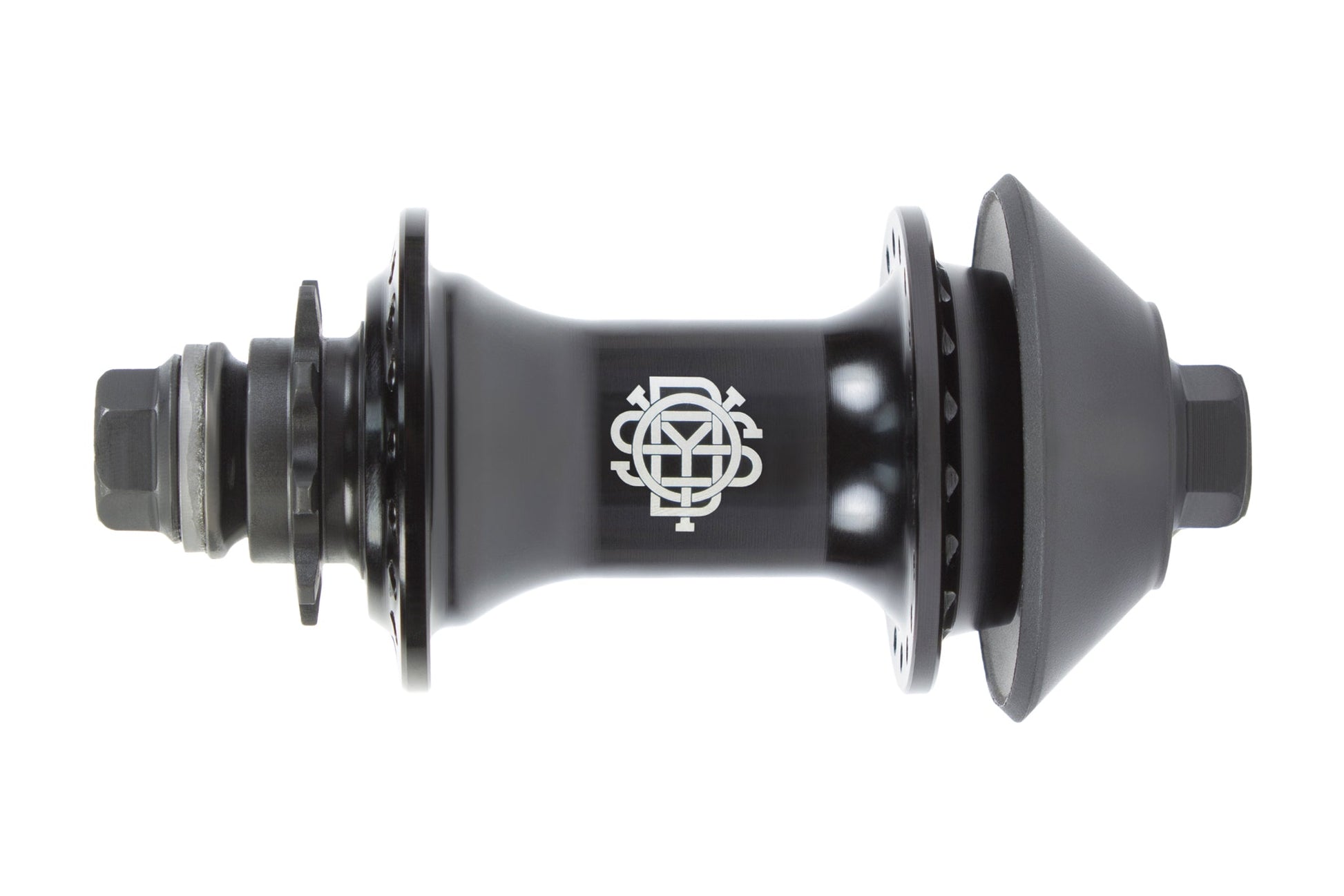

![Odyssey Antigram v2 Cassette Hub](http://store.theloadingbayglasgow.com/cdn/shop/products/ODSY-Antigram-V2-Hub-Black-Top-Guard-2-Web.jpg?v=1662480344&width=1445)

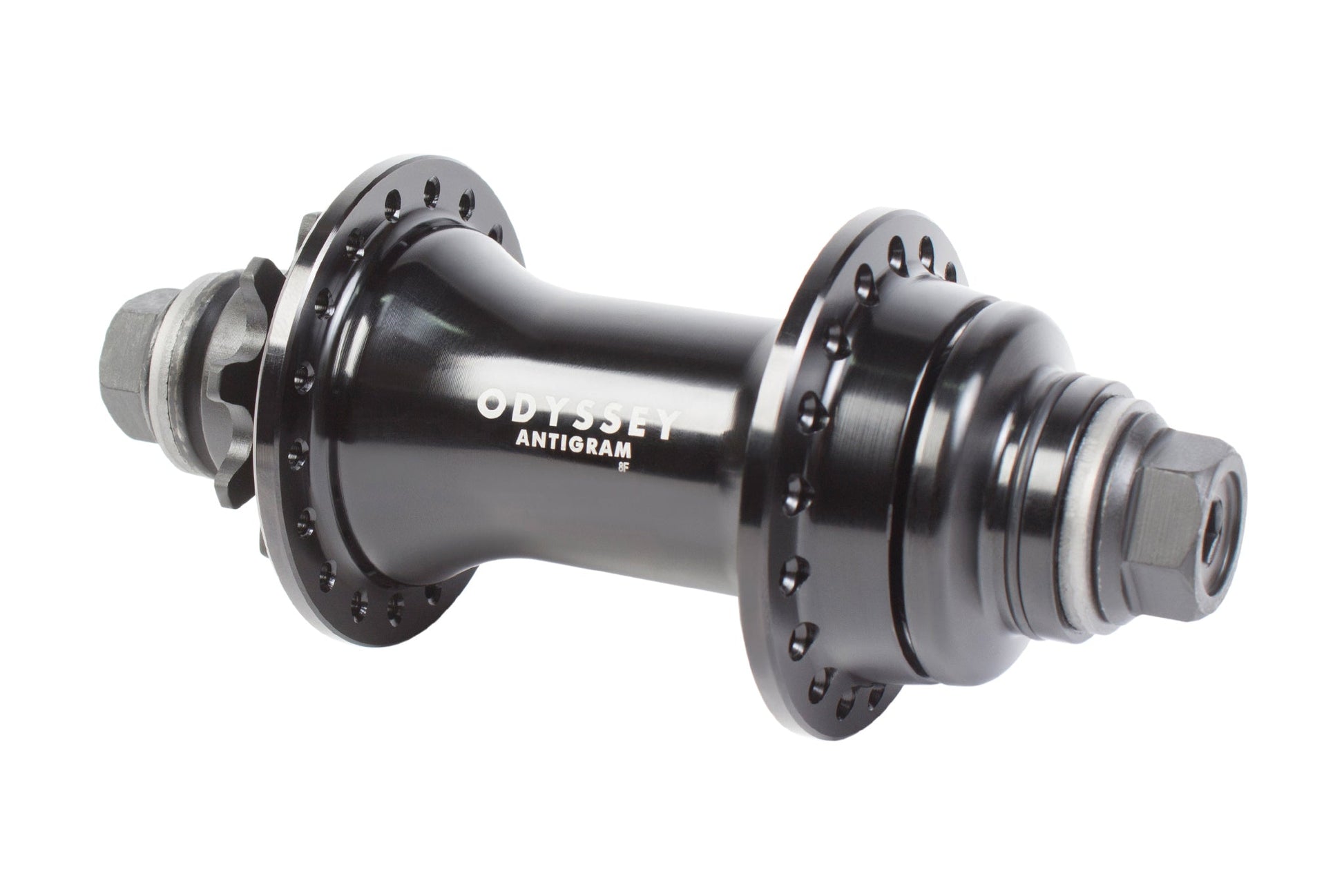

![Odyssey Antigram v2 Cassette Hub](http://store.theloadingbayglasgow.com/cdn/shop/products/ODSY-Antigram-V2-Hub-Black-3Q-No-Guard-1-Web.jpg?v=1662480344&width=1445)
