Fairdale

2022 Fairdale Weekender Frame & Fork Kit

2022 Fairdale Weekender Frame & Fork Kit

£499.99 GBP
£499.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
Size
This product ships from The Loading Bay and is also available for local collection now.

The Weekender is made to travel. While it can easily handle being a weekday commuter on rough city roads, it really shines when you take it for a long haul.

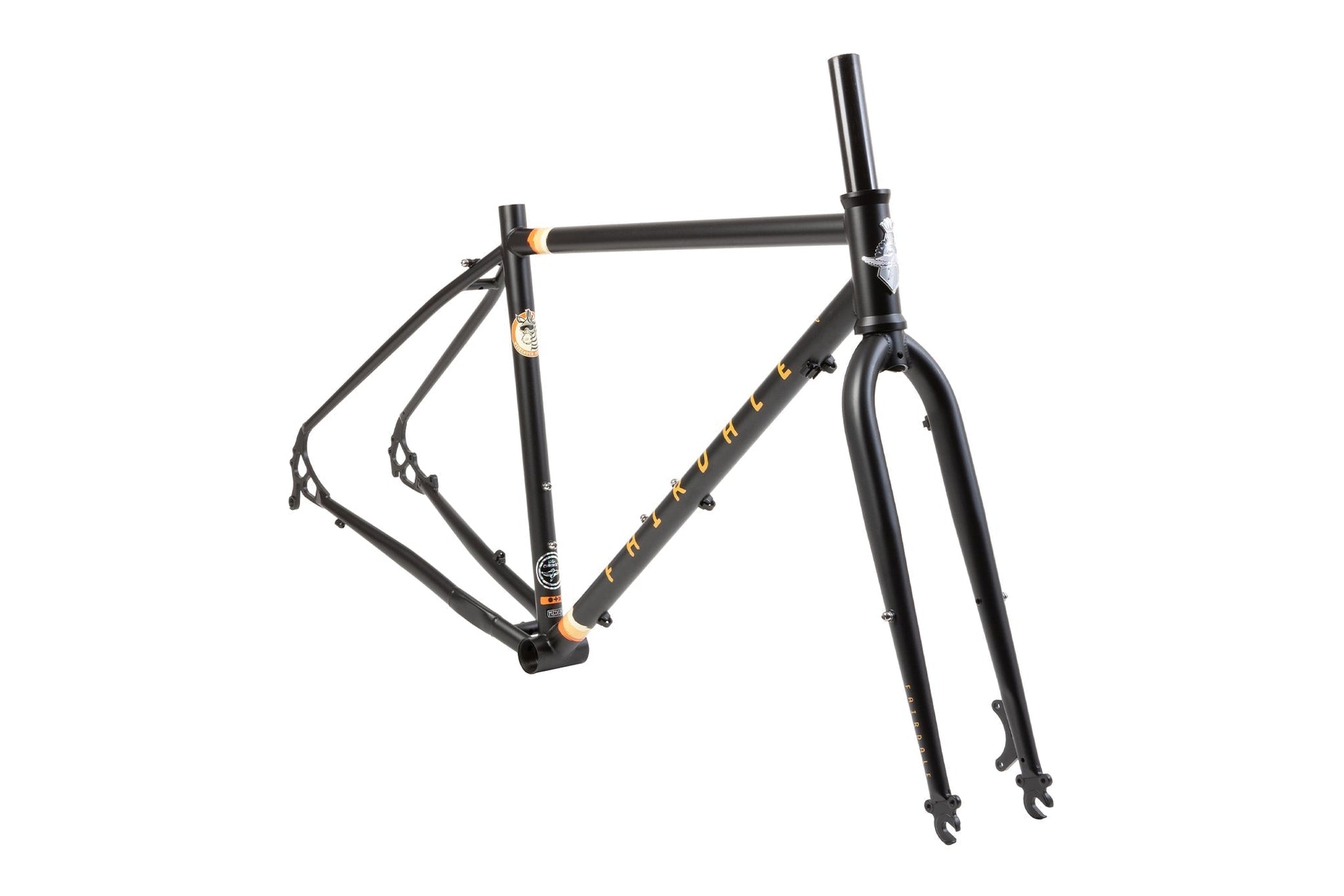

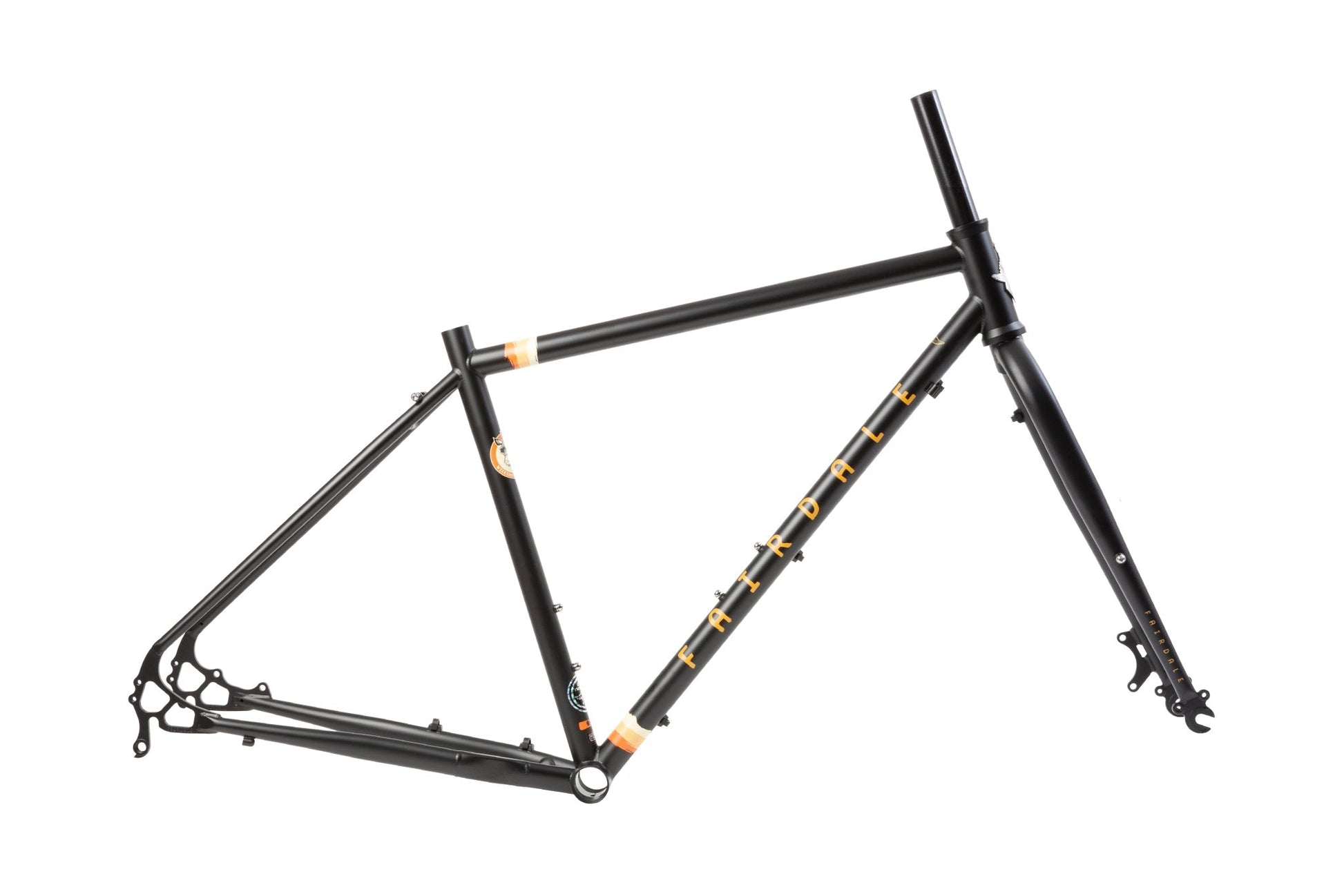

The Weekender 100% 4130 chromoly frame and fork will welcome virtually anything that you can throw at it. It features redesigned geometry that is built around 27.5 x 2.0” tires, and also leaves plenty of space for compatibility with 700c wheels if you ever feel like changing it up.

Sizing

Medium: 5'7" - 5'10" height
Large: 5'9" - 6'1" height
X-Large: 6'1"+ height

Sizing is approximate. Please consult with your local bike shop to assist with fit.

Geometry

Size S (52cm) M (55cm) L (58cm) XL (58cm)
Top Tube (Effective) 523mm 545mm 579mm 602cm
Top Tube (Actual) 505mm 532mm 559mm 585mm
Seat Tube (BB Center To TT Top) 454mm 485mm 533mm 576mm
Seat Tube
(BB Center To TT Center)		 414mm 445mm 493mm 536mm
Seat Tube Angle 74° 73° 73° 73°
Head Tube Length 120mm 122mm 146mm 167mm
Head Tube Angle 70° 71° 71.5° 71.5°
Chain Stay Length 415mm 440mm 440mm 440mm
Wheelbase 1005mm 1037mm 1058mm 1081mm
Standover 745mm 765mm 800mm 830mm
Stack 517mm 565mm 589mm 609mm
Reach 373mm 380mm 398mm 414mm
Fork Length 390mm 416mm 416mm 416mm
Fork Offset 50mm 50mm 50mm 50mm
BB Drop 54mm 72mm 72mm 72mm
Dropout Spacing 135mm 135mm 135mm 135mm
BB Type English 68 English 68 English 68 English 68
Seat Post 27.2mm 27.2mm 27.2mm 272.Mm
Seat Clamp 30mm 30mm 30mm 30mm
Approx. Max Tire Width 27.5"/650b 47mm
 54mm
 54mm
 54mm
Approx. Max Tire Width 29"/700c N/A 53mm 53mm 53mm
Wheel Size 27.5"
 27.5" 27.5" 27.5"
