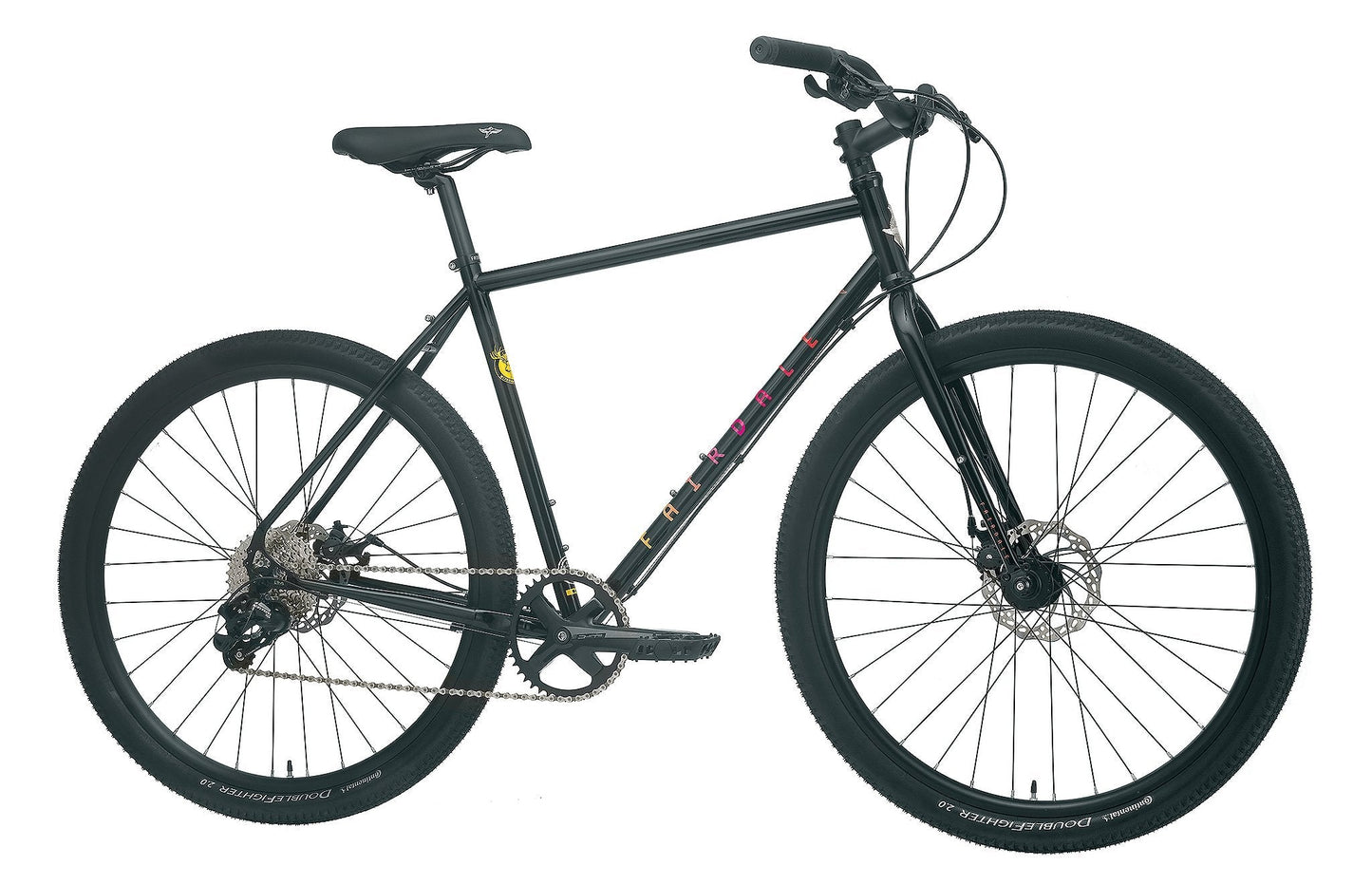

2022 Fairdale Weekender Archer (SRAM Version)
2022 Fairdale Weekender Archer (SRAM Version)
One of the first bikes that Fairdale ever made was the Weekender. They envisioned a “light-tourer” that would work as a weekday commuter and a weekend getaway machine.
Over the years Fairdale have refined the Weekender, but its focus has stayed the same. The riding position is comfortable for the long haul or an evening ride. The shifting is wonderfully simple to use, and the disc brakes get a nice power-boost from their own Linear Slic Kables, made for Fairdale by Odyssey®.
The Weekender has a redesigned geometry to work with 27.5 x 2.0” tires, and also leaves plenty of space for compatibility with 700c wheels if you ever feel like changing it up.
Gloss Black is available in Medium, Large, and X-Large.
Sage Green is available in X-Small, Small, Medium, Large, and X-Large.
Sizing
X-Small: 4'11 - 5'4" height
Small: 5'2" 5'7" height
Medium: 5'7" - 5'10" height
Large: 5'9" - 6'1" height
X-Large: 6'1"+ height
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specs
Frame: 100% Chromoly, Disc, w/Rack and Fender mounts (M/L/XL 700c Compatible)
Fork: 100% Chromoly. One-piece machined steerer tube
Handlebar: Fairdale Archer v3, Aluminum
Stem: 70mm, Forged Aluminum (60mm on XS)
Headset: FSA, Sealed Integrated, 45º/45º
Brake Lever: Promax XL-91
Brake: Promax DSK-717
Grips: Fairdale Swan
Saddle: Fairdale Logo Seat
Seat Post: Micro adjust, 27.2mm
Seat Clamp: Fairdale, 30mm
Cranks: FSA Vero Pro 1X NW (XS,S =165mm, M=170mm, L,XL=175mm)
Chainwheel: 42t Narrow-Wide
BB Parts: FSA
Pedals: Odyssey Twisted PC
Rims: 27.5"/650b, 32-Hole, Aluminum, Double Wall, Pinned Rim, Tubeless compatible
Front Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Rear Hub: Sealed Bearings, 32-H, Alum. Shell, Disc Brake Mount, w/Allen Skewer Axle
Tires: Continental Dbl Fighter III, 27.5"/650b x 2.0 (27.5” x 1.65” Maxxis Overdrive on XS/S)
Chain: KMC X9
Cassette: Sturmey Archer, 11-36T, 9-Speed
*Cassette Alternate: Microshift CS-H093, 11-42T, 9-Speed
R. Shift Lever: SRAM X5 Trigger, 9-Speed
*R. Shift Lever Alternate: Microshift Advent Trigger, 9-Speed
R. Derailleur: SRAM X5 Long Cage, 9-Speed
*R. Derailleur Alternate: Microshift Advent, 9-Speed
Shift Cable: Fairdale
Geometry
Size | XS (50cm) | S (52cm) | M (55cm) | L (58cm) | XL (58cm) |
Top Tube (Effective) | 505mm |
523mm | 545mm | 579mm | 602cm |
Top Tube (Actual) | 487mm |
505mm | 532mm | 559mm | 585mm |
Seat Tube (BB Center to TT Top) | 401mm |
454mm | 485mm | 533mm | 576mm |
Seat Tube (BB Center to TT Center) |
360mm |
414mm | 445mm | 493mm | 536mm |
Seat Tube Angle | 74.5° | 74° | 73° | 73° | 73° |
Head Tube Length | 115mm |
120mm | 122mm | 146mm | 167mm |
Head Tube Angle | 70° | 70° | 71° | 71.5° | 71.5° |
Chain Stay Length | 415mm | 415mm | 440mm | 440mm | 440mm |
Wheelbase | 992mm |
1005mm | 1037mm | 1058mm | 1081mm |
Standover | 717mm |
745mm | 765mm | 800mm | 830mm |
Stack | 512mm |
517mm | 565mm | 589mm | 609mm |
Reach | 361mm |
373mm | 380mm | 398mm | 414mm |
Fork Length | 390mm | 390mm | 416mm | 416mm | 416mm |
Fork Offset | 50mm | 50mm | 50mm | 50mm | 50mm |
BB Drop | 54mm | 54mm | 72mm | 72mm | 72mm |
Dropout Spacing | 135mm | 135mm | 135mm | 135mm | 135mm |
BB Type | English 68 | English 68 | English 68 | English 68 | English 68 |
Seat Post | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 272.mm |
Seat Clamp | 30mm | 30mm | 30mm | 30mm | 30mm |
Approx. Max Tire Width 27.5"/650b | 47mm | 47mm |
54mm |
54mm |
54mm |
Approx. Max Tire Width 29"/700c | N/A | N/A | 53mm | 53mm | 53mm |
Wheel Size | 27.5" |
27.5" |
27.5" | 27.5" | 27.5" |
