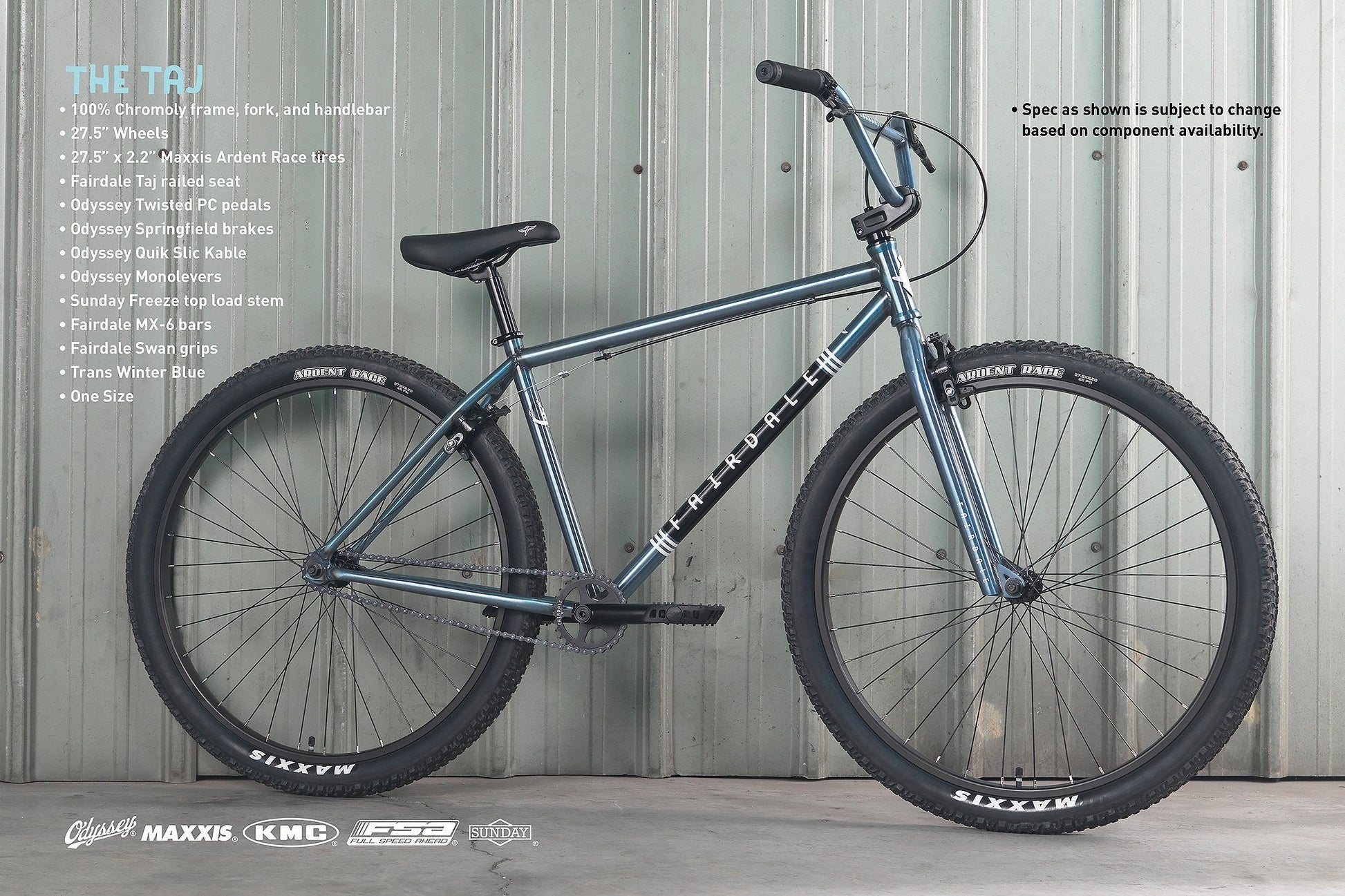

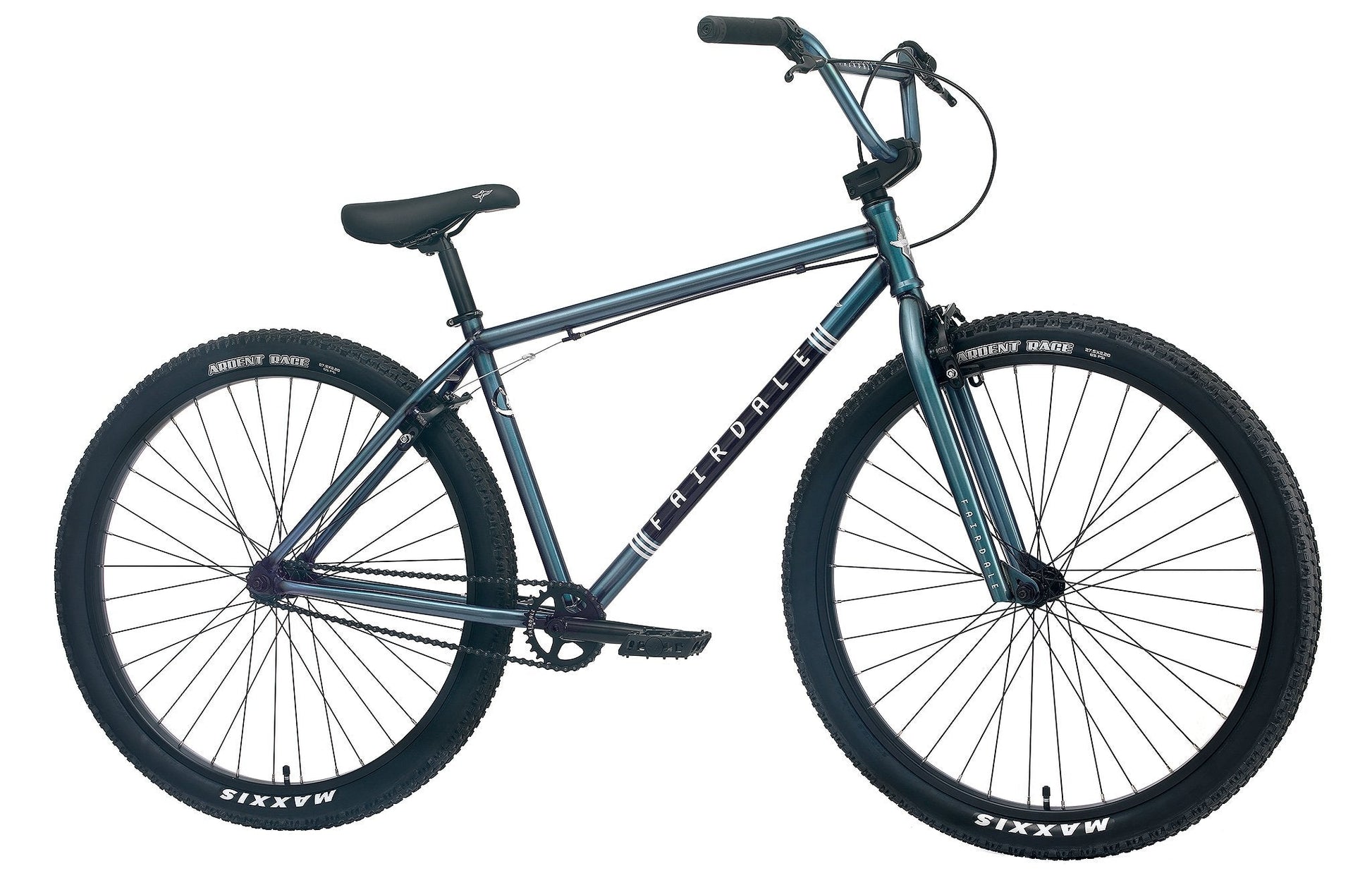

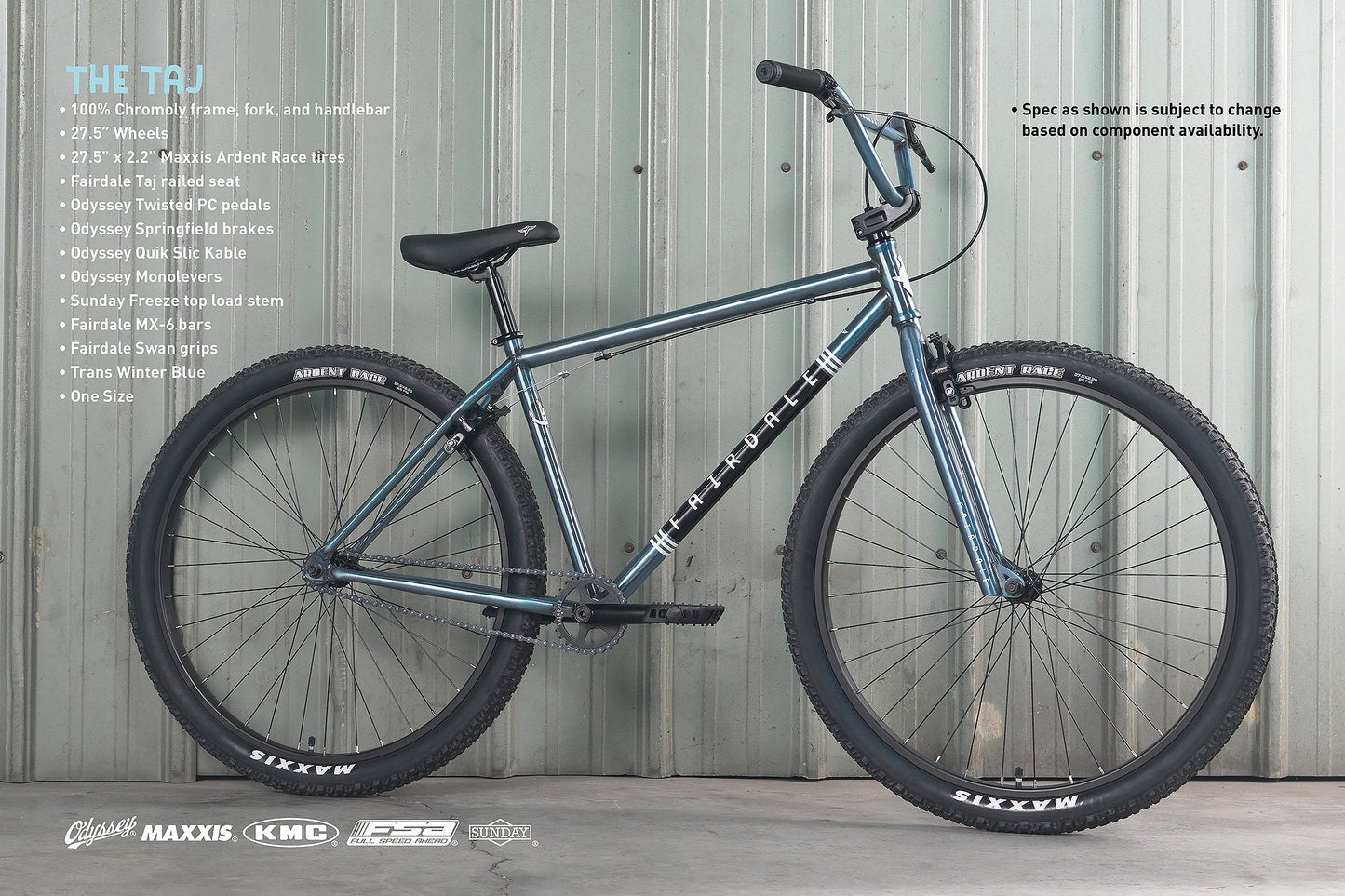

2022 Fairdale Taj
2022 Fairdale Taj
“I’m excited to introduce you to my 2022 signature bike. The Taj bike has always been about blending the tough and simple sensibilities of a BMX bike with a frame size that you can also comfortably sit down and pedal. This year’s model makes the jump to 27.5” wheels which are still agile enough for playing around, and even better for cruisin’. The frame, fork, handlebars, and cranks are all reliable chromoly. The single-speed drivetrain and Odyssey brakes are as dependable and straightforward as they can possibly be. The Taj is a bike that is fun to ride, made to last and a breeze to keep rolling. I hope you’ll give it a try.”
-Taj Mihelich
Available in Translucent Winter Blue with 27.5" wheels.
Sizing
27.5": 5'4" height and up
Sizing is approximate. Please consult with your local bike shop to assist with fit.
Specs
Frame: 100% Track Certified Chromoly
Fork: 100% Chromoly. One-piece machined Steerer Tube
Handlebar: Fairdale MX-6 Bar, 100% Chromoly Steel
Stem: Sunday Freeze, Top-Load, 48mm Reach
Headset: FSA Sealed Integrated, 45º/45º
Brake Lever: Odyssey Monolever, Left and Right
Brake: Odyssey Springfield, Front and Rear
Grips: Fairdale Swan
Saddle: Fairdale Taj, Railed
Seat Post: 27.2mm
Seat Clamp: Fairdale, 30mm
Cranks: Chromoly 3-Piece, Chromoly, 175mm
Chainwheel: Fairdale, 28t
BB Parts: Mid, 19mm, Press-fit, Sealed
Pedals: Odyssey Twisted PC
Rims: Double wall, 36-Hole, Aluminum
Front Hub: 36-Hole, 3/8” Axle, Aluminum Shell, Sealed Bearing
Rear Hub: 36-Hole, 3/8” Axle, Aluminum Shell, Sealed Bearing Cassette
Tires: Maxxis Ardent Race, 27.5 x 2.2”
Chain: KMC S1
Driver: 14t Freewheel
Geometry
Size | 27.5" (60cm) |
Top Tube (Effective) | 616mm |
Top Tube (Actual) | 586mm |
Seat Tube (BB Center to TT Top) | 445mm |
Seat Tube (BB Center to TT Center) |
405mm |
Seat Tube Angle | 71° |
Head Tube Length | 117.5mm |
Head Tube Angle | 71° |
Chain Stay Length | 437mm |
Wheelbase | 1067mm |
Standover | 766mm |
Stack | 547mm |
Reach | 428mm |
Fork Length | 414mm |
Fork Offset | 34mm |
BB Drop | 55mm |
Dropout Spacing | 110mm |
BB Type | Mid Press Fit |
Seat Post | 27.2mm |
Seat Clamp | 30mm |
Approx. Max Tire Width | 63mm |
Wheel Size | 27.5" |
